Medium Duty 25mm Return Flange Cable Tray Roll Forming Machine 380V 50Hz

Medium duty (25mm Return Flange) Cable Tray Roll Forming Production Machine Line manufacturer

Main technical parameters

1.1 Technical parameters of machine

1.1.1 Area of production line: length 50m x width 4m x height 5m

1.1.2 Feeding direction: from left side to right side

1.1.3 Power: 380V, 50Hz, 3 phase

1.1.4 Pneumatic station: pressure 0-0.7MPa.,0.5M3/min.

1.1.5 Hydraulic oil: 46# Hydraulic oil

1.1.6 Gear oil: 18# gear oil

1.1.7 Color: blue

1.2 Main technical parameters

1.2.1 Width of material sheet:120-940mm

1.2.2 Thickness of material sheet: 0.8~2.0 mm

1.2.3 Line speed with punching: 3-6M/min

1.2.4 Length of finished product: 3m

1.2.5 Total power: about 78KW;380V50HZ

2. Forming product range

2.1 Cable tray Maximum thickness:1.0~2mm

Cable Tray Roll Forming Machine

Main forming machine

a. Type: double hanger gearing drive. Forming width is adjusted by

automatic forming wall moving, it also can adjust height quickly.

b. Insert the sheet plate which already perforated into the machine, through 18 stations to roll as the cable tray. It consists with the speed regulation alternating current machine, reducer, high-precision linear rails, gearbox (left and right side), the crosswise adjusting mechanism and one complete set of rollers. One set of roller can complete all type of the cable tray,type change can through the adjustment of the one side of machine by motor. The main body and the gearbox use the welding structure, de-stressing processing; the material of the gear is the 45 steel hard tooth surface. Forming technology of main forming machine is from Italy, it will guarantee high-precision.

The roller uses the combinated structure, the speed difference and the forming resistance are small, the steel plate surface will be less wear; and also guaranteed the precision shape of the working piece with no scratch .The material of the roller is the GCr15 forging, after whole quenching then by numerical control processing, degree of hardness can reach HRC58-62; Has the characteristic with high strength, hardness, precision and long service life etc.

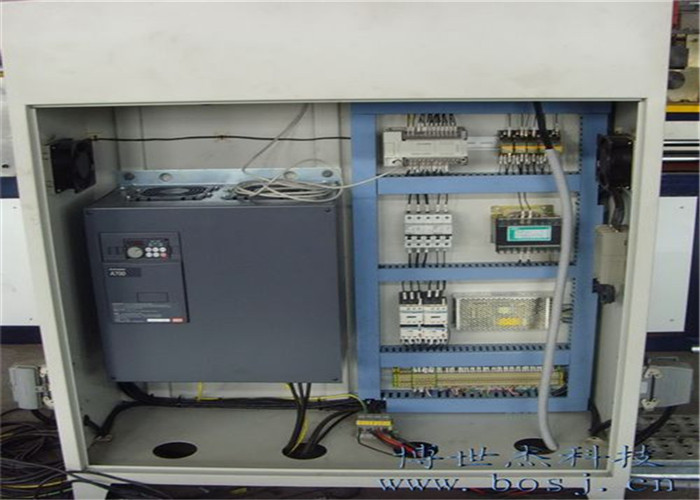

Electric control system

a. Full line is controlled by PLC control system with touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc...

b. Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency stop ensures the safe of the equipment and operator.

c.Machine side is equipped with the manual operation control panel for convenient worker to operate;

Control styp: manual handle

4,Produce condition

capability: about 71.5kw

gas fountain: 0.9 cube/min

Production land area: 33m*3m

5,Machine Parameter
